LOCK BODY & CYLINDERS

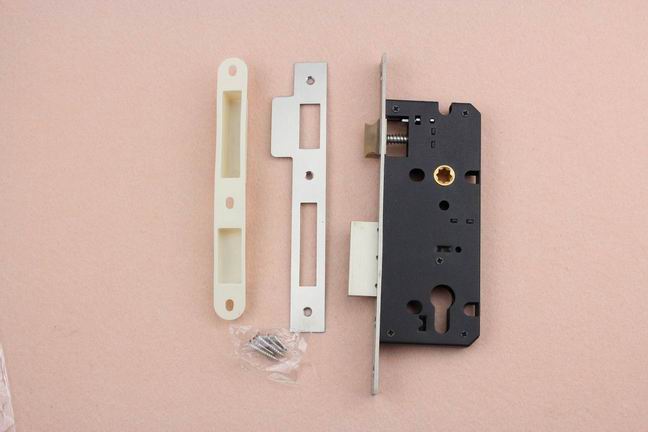

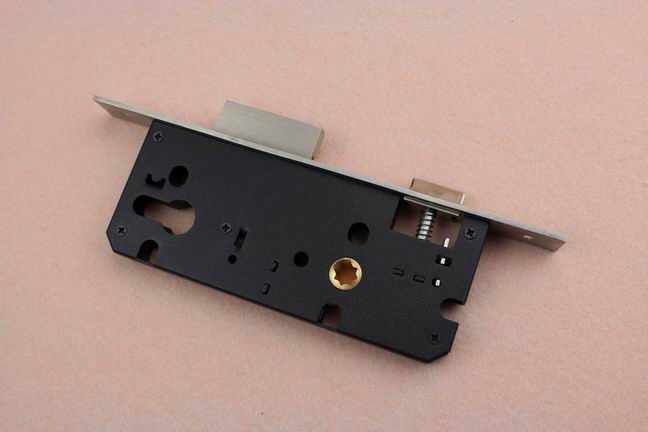

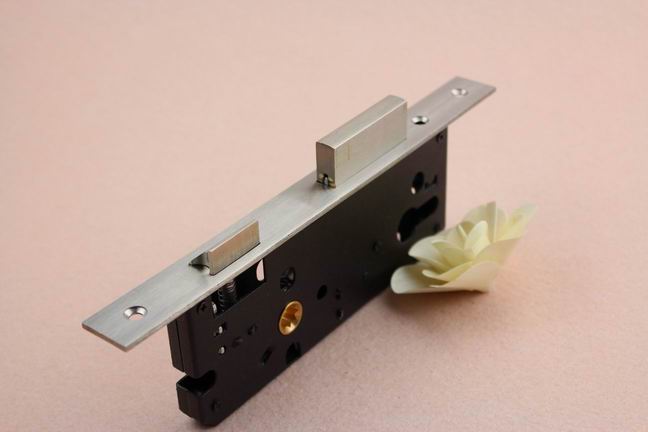

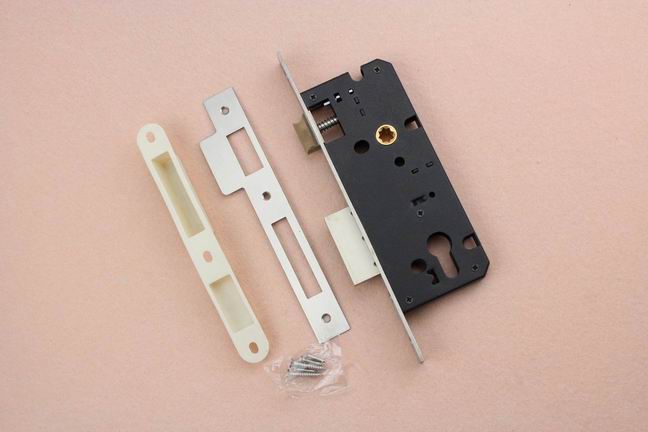

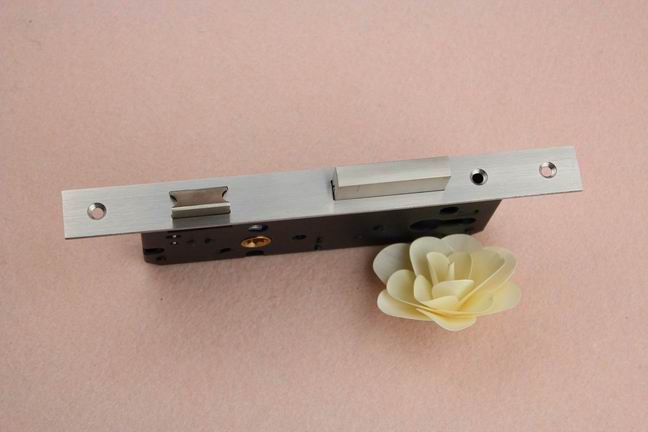

RML-09 4572 Wooden Door Lock body

 Description:

Latch bolt operated by handle and cylinder,

Deadbolt operated by cylinder,

Lock suits for flat door and rebated door of wooden and metal material,

Latch bolt can be changed left or right.

Suitable Cylinder European standard cylinder

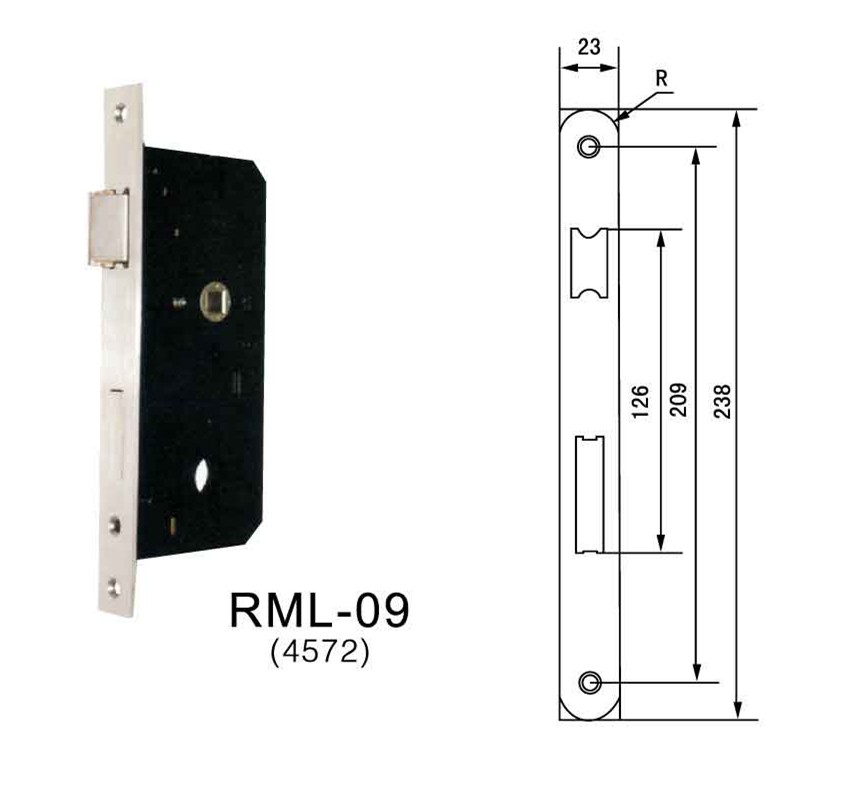

Dimensions

Latch to Deadbolt distance: 126mm

Forend plate size:238X23X3mm

Center distance: 72mm

Backset: 45mm

Latch length outside of forend plate: 12mm

Dead bolt length outside of forend plate: 12mm

Material and Function


Lock Body cover: No fingerprint electrolysis board
Latch: SUS201, slope curbature, turn smooth
Dead bolts: SUS201, 2 turns
Forend plate: stainless steel, with round head or square edge
Strike late: stainless steel

 Finish

Brushed, Mirror Polished, Gold Plated, Sandy Gold Plated, Antique Brass, Antique Copper

Fittings Strike Plate, button box,screws for installing
